RIGHT-ANGLE PHONE JACKS
JACKS AND PLUGS
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
1/4" RIGHT-ANGLE PHONE JACKS
SERIES SN37, SN49 AND SN70
101

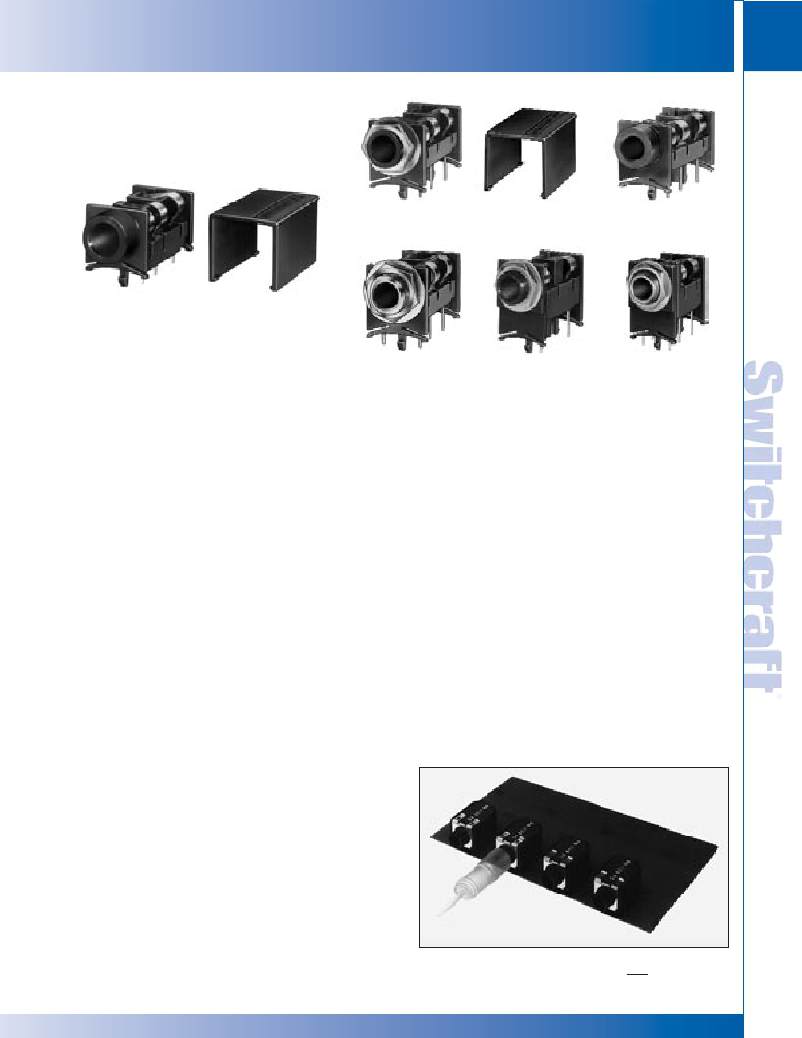

SN37A14B with cover Number P2993
SN49B12B with cover Number P2994
SN49A12B
SN49C12B
SN70B12A
SN70C14B
These low-profile phone jacks have “snap-in” PC mounting,
right-angle plug insertion and available with 2- and 3-conductor
circuits and plastic or metal bushings. Ideal for telecommunications,
data processing and other high quality audio connecting
applications.
SERIES SN37A - Right-angle PC mount phone jack with molded
plastic housing. Only .375" high, this jack features a plain
(non-threaded) bushing and accepts commercial standard phone
plugs with .25" diameter finger.
Jack circuit selection:
2-conductor ? Single open circuit ? Shunted tip
3-conductor ? Double open circuit ? Shunted tip and ring
Jack housing snaps into PC boards (.062" thick) and features
molded tension fingers to provide stable mount. Location pin
polarizes mounting for correct insertion every time. Clearance
between housing facilitates board cleaning without disturbing
internal springs. SN37 without tension fingers available on
special order.
Molded housing protects internal parts and allows high density
packaging. Supplied with “Snap-On” cover.
SERIES SN49A - Similar to Series SN37A, except .492" high and
insulated/plain (non-threaded) bushing. “Snap-On” cover available
on special order only.
SERIES SN49B - Similar to Series SN37A, except .492" high and
insulated threaded bushing. Washer and hex nut for bushing
mount supplied. “Snap-On” cover available on special order only.
SERIES SN49C - Similar to Series SN37A, except .492" high and
threaded metal bushing. Washer and hex nut for bushing mount
supplied. “Snap-On” cover available on special order only.
SERIES SN70B - This series features threaded/insulated
bushing and .708" in height. Circuit selection and housing features
are same as Series SN49B. “Snap-On” cover not available.
SERIES SN70C - Same as Series SN70B, except bushing is
threaded metal type.
SPECIFICATIONS
MECHANICAL
Shock: Per MIL-STD-202, method 213.
Vibration: Per MIL-STD-202, method 201.
Insertion Force: 8 pounds maximum.
Withdrawal Force: 1.5 pounds minimum.
Life: 10,000 cycles minimum.
ELECTRICAL
Insulation Resistance: 2 x 106 M ? at 500 V DC per
MIL-STD-202, method 302 (initial).
Dielectric Withstanding Voltage: 500 V AC.
ENVIRONMENTAL
Thermal Range: -55°C (-67°F) to +85°C (+185°F) Non
operating. -20°C to + 65°C Operating.
Thermal Shock: Per MIL-STD-202d, method 107.
Humidity: Per MIL-STD-202, method 106, less steps 7A and 7B.
Salt Spray: Per MIL-STD-202, method 101.
MATERIAL
Housing and Cover: Black thermoplastic, UL 94V-O.
Contact Springs: Copper alloy with tin-plated terminals.
Hardware: Nickel-plated copper alloy.
Metal Bushing: Nickel-plated copper alloy.
ORDERING
1. Order jacks from tables on page 103.
2. For all special order items, contact Switchcraft.
DIMENSIONS ARE FOR REFERENCE ONLY
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
Inch
(mm)
